iOS configuration

Updated: Dec 3, 2024

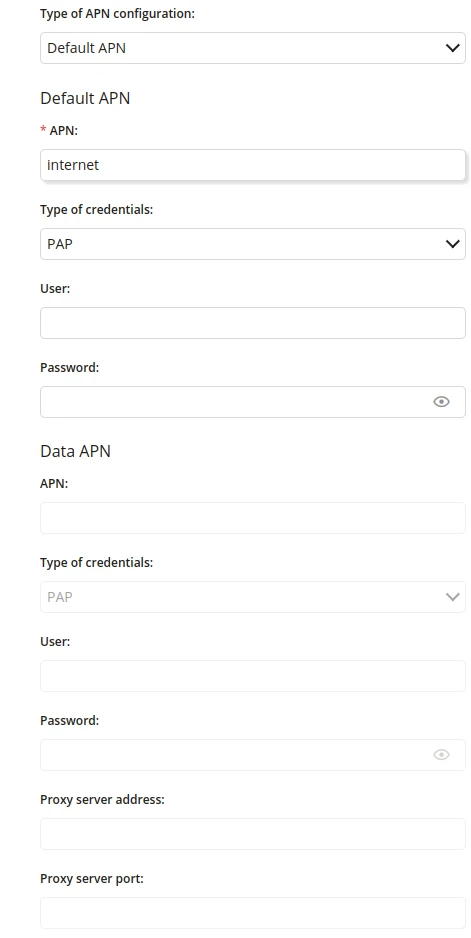

APN configuration provides access to the Internet or optionally provides access to MMS or WAP.

1 Type of APN configuration

• Choose a type of APN configuration
• One of:
  • Default APN
  • Data APN
  • Default APN and Data APN

2 Default APN - APN

• Enter the Default APN Access Point Name
• Maximum length of the text is 255
• Required if "Default APN" or "Default APN and Data APN" is chosen

3 Default APN - Type of credentials

• One of:
  • PAP
  • CHAP

4 Default APN - User

• Enter the Default APN username
• Maximum length of the text is 255

5 Default APN - Password

• Enter the Default APN user password
• Maximum length of the text is 255

6 Data APN - APN

• Enter the Data APN Access Point Name
• Maximum length of the text is 255
• Required if type of APN configuration is "Data APN" or "Default APN and Data APN"

7 Data APN - Type of credentials

• One of:
  • PAP
  • CHAP
• Available if "Default APN" or "Default APN and Data APN" is chosen

8 Data APN - User

• Enter the Data APN username
• Maximum length of the text is 255
• Available if "Default APN" or "Default APN and Data APN" is chosen

9 Data APN - Password

• Enter the Data APN user password
• Maximum length of the text is 255
• Available if "Default APN" or "Default APN and Data APN" is chosen

10 Proxy server address

• Enter the proxy server address
• Maximum length of the text is 255
• Available if "Default APN" or "Default APN and Data APN" is chosen

11 Proxy server port

• Enter the proxy server port
• Maximum value is 65535
• Available if "Default APN" or "Default APN and Data APN" is chosen
